Pro Series III steam generator with red and silver design on a white background

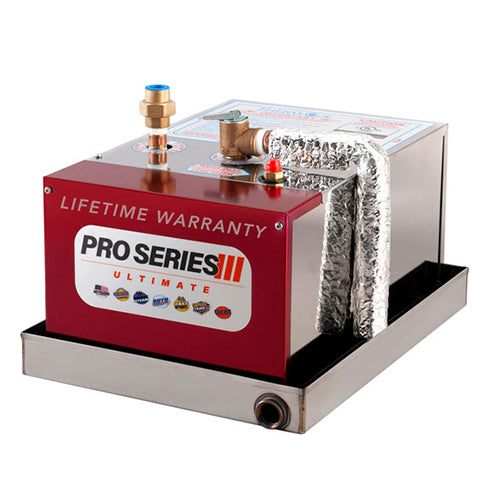

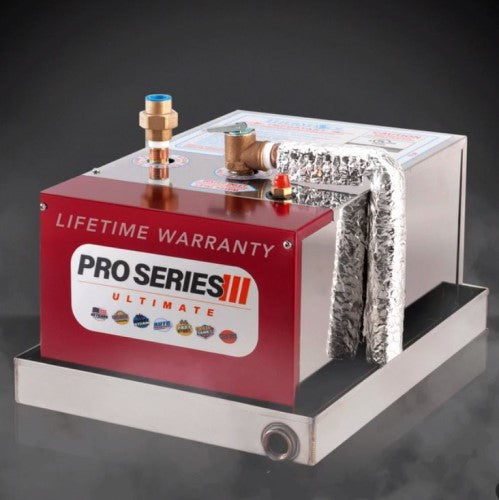

Thermasol PRO Series III Ultimate Steam Generator

Thermasol PRO Series III Ultimate Steam Generator

$4,435.71

Engineered to blend efficient steam with lasting quality, PRO Series III generators from ThermaSol provide innovative technology that sets the bar for a soothing steam shower experience.

PROIII-84 - 6kW rooms up to 84 cu. ft.
PROIII-140 - 8kW rooms up to 140 cu. ft.
PROIII-240 - 10kW rooms up to 240 cu. ft.
PROIII-395 - 11kW rooms up to 395 cu. ft.
PROIII-575 - 15kW rooms up to 575 cu. ft.
PROIII-750 - 20kW rooms up to 750 cu. ft.
PROIII-1200 - 24kW rooms up to 1200 cu. ft.

Description

The ThermaSol PRO Series III is one of the most technologically advanced and reliable steam shower generators available today, purposefully designed to consistently deliver steady steam at precise temperatures for long lasting enjoyment.

SmartSteam™

The most desired feature among steam shower enthusiasts, ThermaSol's patented SmartSteam™ system intelligently monitors the power output needed to sustain the desired temperature, ensuring that steam is delivered at a constant rate without lags, bursts, or temperature fluctuations. The result is a perfect steam shower oasis without unwelcome interruptions.

FastStart™

Constructed from an industrial grade stainless steel, the generator highlights a split tank design to ensure unit longevity and operational efficiency. By separating the heating function from the water feed function., FastStart™ technology allows steam to be produced within seconds of turning on the system.

PowerFlush™

As a pressurized inner tank self-cleaning system, the included PowerFlush™ feature is designed to break up any sediments that may collect inside of your generator. It is recommended to run a PowerFlush™ cycle at least once a month to extend the life of your generator.

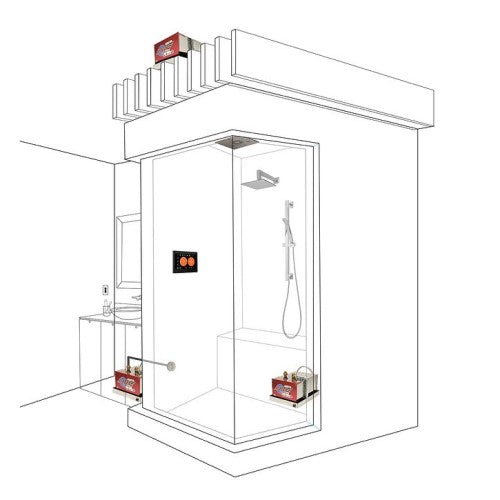

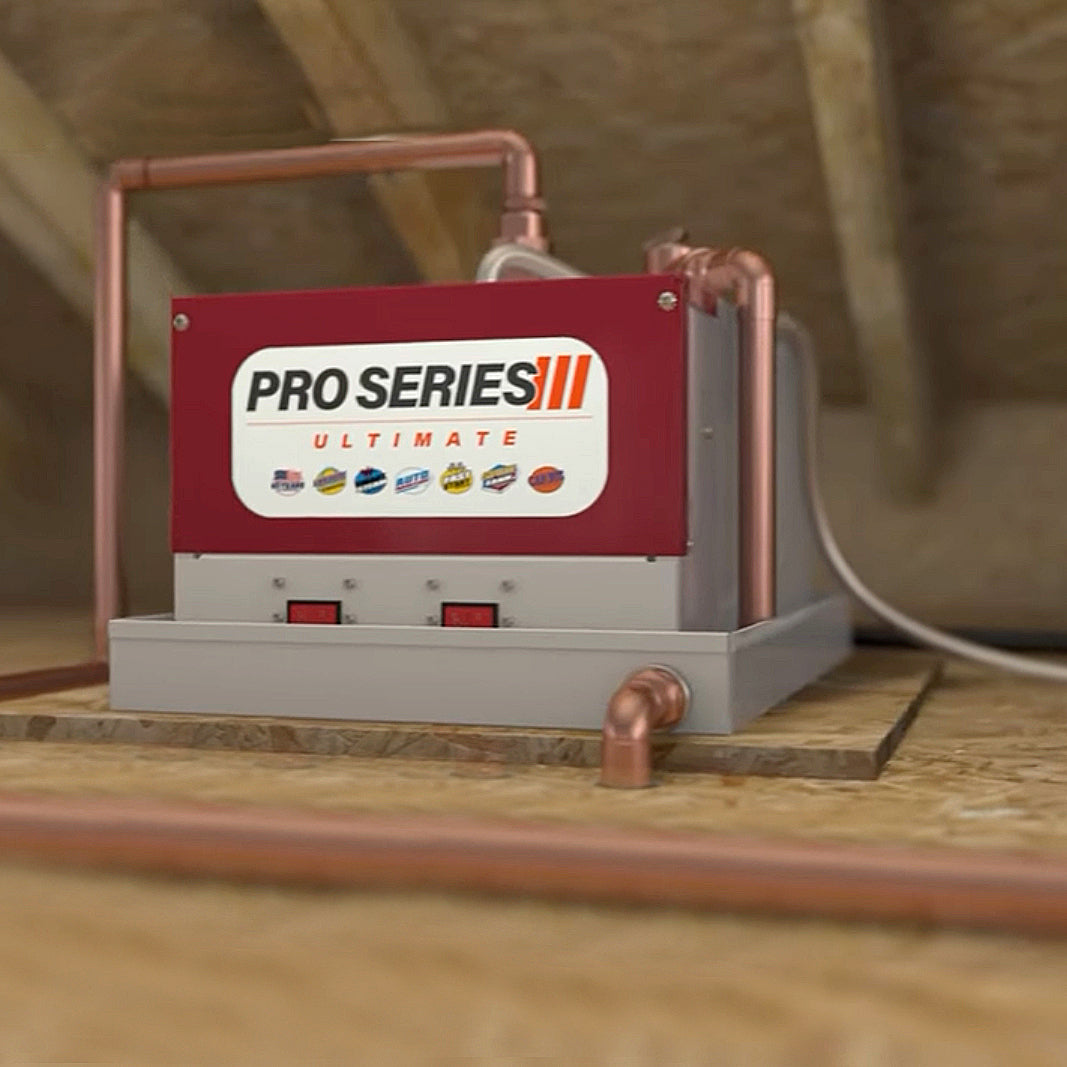

PRO Series III generators additionally come equipped with ThermaSol's two-way digital CAN bus technology, helping the ECU transmit data between the generator and control safely and securely without complex wiring harnesses. The generator can be installed up to 50 feet away from the shower, and must be placed in an accessible, climate-controlled space protected from weather conditions.

Backed by ThermaSol's limited lifetime warranty, the PRO Series III combines timeless quality with sophisticated performance for those embarking on their wellness journey.

Features

Industrial grade stainless-steel construction.
SmartSteam™ for constant steam at a constant rate.
FastStart™ for steam in seconds, not minutes.
PowerFlush™ for protecting generator operation and longevity.
Incoloy heating elements for superior corrosion protection.
Split tank design to provide efficient steam production.
Stainless-steel drain pan for easy maintenance.
Two-way digital CAN bus technology for safe and reliable operation.
Dimensions: 18"L (45.7 cm) x 23"W (58.4 cm) x 14"H (35.6 cm)
Designed, engineered and built in the U.S.A.
Limited lifetime warranty.

Includes

Steam Shower Generator
208-240 Volt Power Cord (for generators under 11kW)
Stainless-Steel Drain Pan
3/8" Braided Stainless Steel Hose & Fitting
In-Line Water Screen Kit
Pre-Plumbed Safety Relief Valve
Steamhead Housing & Cable Kit
50' CAN Bus Cable for the Controller
Installation Instructions
Limited Lifetime Warranty

Specifications

Safety Valve
Pre-Plumbed
Width
18" (45.7 cm)
Input Voltage
208-240 VAC, 1-Phase
Water Inlet
3/8" Compression
Steam Outlet
1/2" NPT
Drain Pan
3/4" NPT
All Models
Depth
23" (58.4 cm)
Height
14" (35.6 cm)

Model
PROIII-84
Kilowatt Rating
6.0 kW
Maximum Room Size
84 cu. ft.
Weight
44 lbs (20 kg)
Electrical Connection
NEMA 6-30P
Maximum Amperage
28 AMPS

Model
PROIII-140
Kilowatt Rating
8.0 kW
Maximum Room Size
140 cu. ft.
Maximum Amperage
37 AMPS
Electrical Connection
NEMA 6-50P
Weight
44 lbs (20 kg)

Model
PROIII-240
Kilowatt Rating
10.0 kW
Maximum Room Size
240 cu. ft.
Maximum Amperage
46 AMPS
Electrical Connection
NEMA 6-50P
Weight
44 lbs (20 kg)

Model
PROIII-395
Kilowatt Rating
11.0 kW
Maximum Room Size
395 cu. ft.
Maximum Amperage
55 AMPS
Electrical Connection
Hardwired
Weight
44 lbs (20 kg)

Model
PROIII-575
Kilowatt Rating
15.0 kW
Maximum Room Size
575 cu. ft.
Maximum Amperage
69 AMPS
Electrical Connection
Hardwired
Weight
48 lbs (21.8 kg)

Model
PROIII-750
Kilowatt Rating
20.0 kW
Maximum Room Size
750 cu. ft.
Maximum Amperage
92 AMPS
Electrical Connection
Hardwired
Weight
48 lbs (21.8 kg)

Model
PROIII-1200
Kilowatt Rating
24.0 kW
Maximum Room Size
1200 cu. ft.
Maximum Amperage
110 AMPS
Electrical Connection
Hardwired
Weight
48 lbs (21.8 kg)
