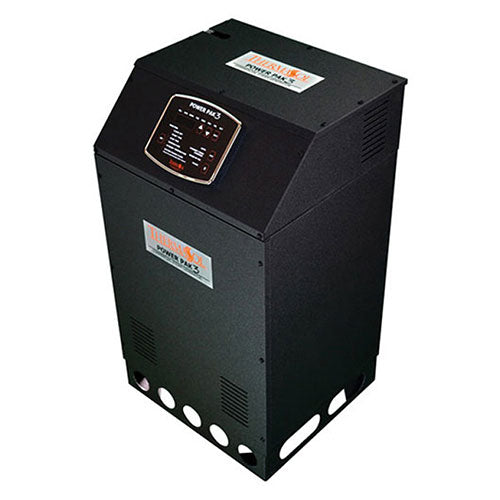

ThermaSol PowerPak III Commercial Steam Shower Generator Kit, from 18-24kW

The ThermaSol PowerPak Series III pairs premium features and intuitive design for commercial steam rooms, ensuring every steam session delivers revitalizing wellness, day after day.

Constructed from industrial-grade stainless steel with a powder coated outer frame, the unit features Incoloy heating elements throughout to resist corrosion and wear. The generators split tank design enhances efficiency and longevity by separating the heating function from the water feed function.

As a pressurized inner tank self-cleaning system, the included PowerFlush™ feature is designed to break up any sediments that may collect inside of your generator.  It is recommended to run a PowerFlush™ cycle at least once a month to extend the life of your generator. This system uses the steam room's drain, so no additional line is needed.

PowerFlush™ cycles can be operated through the fully programmable built-in digital control system. Control functions are highlighted by 7-day programmability, specifying time and temperature settings for each day of the week. The display details diagnostic error codes for easy troubleshooting, with the included CAN bus technology delivering fast and secure communication between the control and the generator.

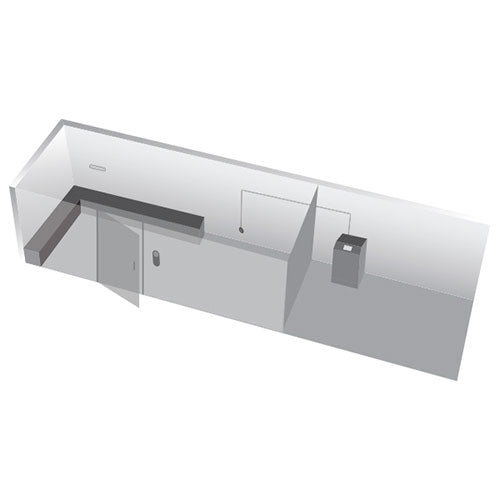

The generator can be installed up to 50 feet away from the steam room, with front and top access for easy servicing when needed. A digital timer for outside the steam room is additionally included so the generator can remain on standby and save energy when not in use.

Covered by ThermaSol’s 18-month parts and labor warranty, the PowerPak Series III commercial steam generator kit is packed with convenient features and effective materials to empower commercial spaces with plentiful, seamless steam.

• Industrial grade stainless-steel construction.
• Fully programmable digital control system.
• PowerFlush™ for protecting generator operation and longevity.
• Split tank design to provide efficient steam production.
• Incoloy heating elements for superior corrosion protection.
• Front and top access for streamlined maintenance.
• CAN bus technology for safe and reliable operation.
• Powder coated steel enclosure.
• Dimensions: 19"L (48.3 cm) x 18"W (45.7 cm) x 32"H (81.3 cm)
• Kit components come packaged together for an all-in-one steam system.
• Designed, engineered and built in the U.S.A.
• 18-month parts and labor warranty.

• Steam Shower Generator with Built-in Control

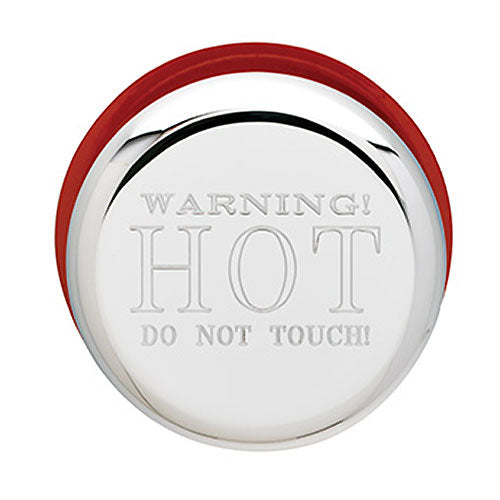

• Polished Chrome Steamhead

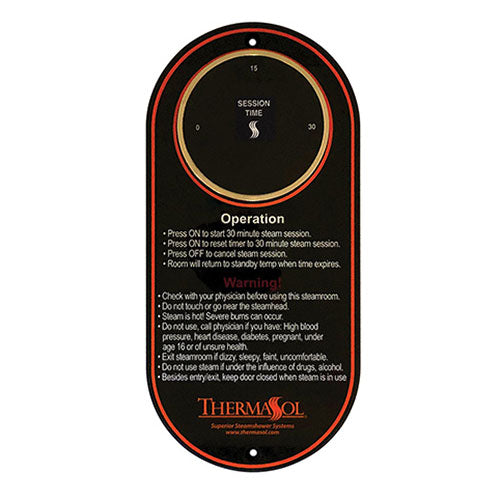

• Digital Timer and M8 Cable
• Temperature Sensor and 50' Lead Wire
• 18-Month Parts and Labor Warranty

All Models
Water Inlet
3/8" Compression
Steam Outlet
1" NPT
Safety Valve
3/4" NPT
Electrical Connection
Hardwired
Weight
120 lbs (54.4 kg)
Width
18" (45.7 cm)
Depth
19" (48.3 cm)
Height
32" (81.3 cm)
Model
PP18SR-240
Input Voltage
208-240 VAC, 3-Phase
Kilowatt Rating
18.0 kW
Maximum Amperage
44 AMPS
Overcurrent Protection Size
60 AMPS
Room Size
Less than 1000 cu. ft.
Model
PP18SR-480
Input Voltage
480 VAC, 3-Phase
Kilowatt Rating
18.0 kW
Maximum Amperage
22 AMPS
Overcurrent Protection Size
30 AMPS
Room Size
Less than 1000 cu. ft.
Model
PP24LR-240
Input Voltage
208-240 VAC, 3-Phase
Kilowatt Rating
24.0 kW
Maximum Amperage
58 AMPS
Overcurrent Protection Size
70 AMPS
Room Size
Greater than 1000 cu. ft.

Model
PP24LR-480
Input Voltage
480 VAC, 3-Phase
Kilowatt Rating
24.0 kW
Maximum Amperage
29 AMPS
Overcurrent Protection Size
40 AMPS
Room Size
Greater than 1000 cu. ft.
