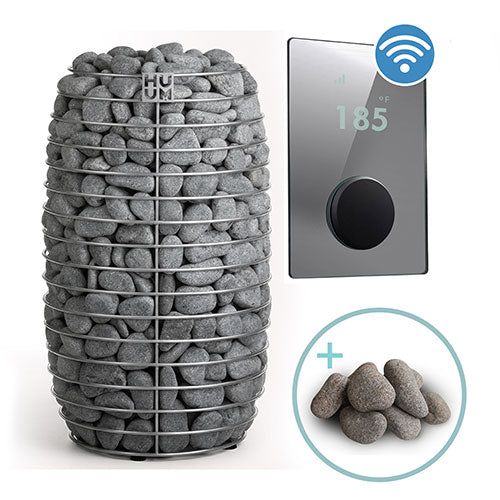

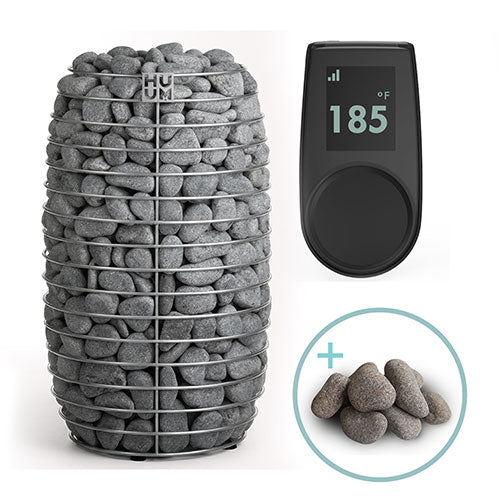

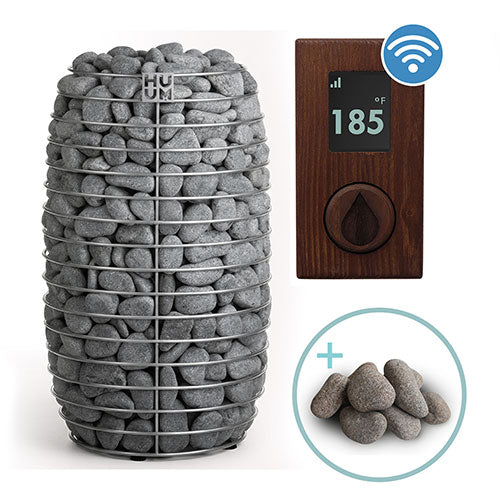

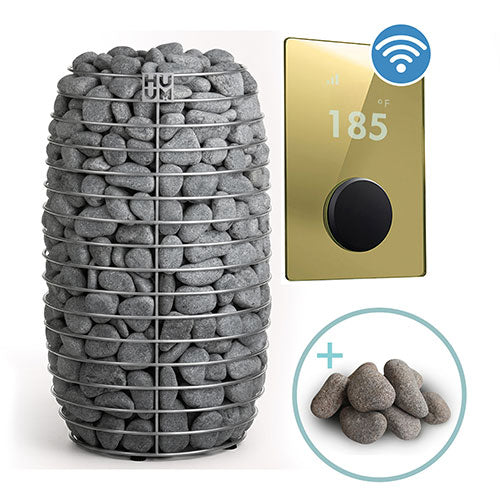

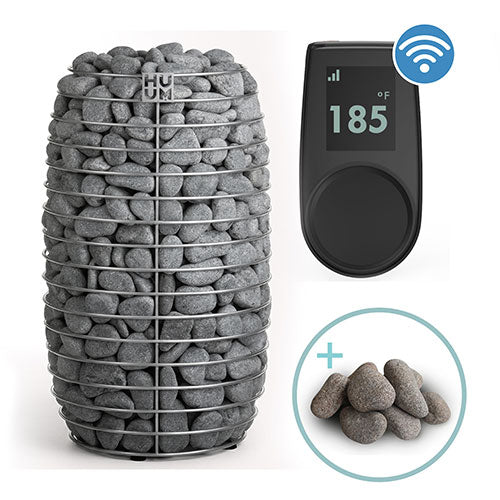

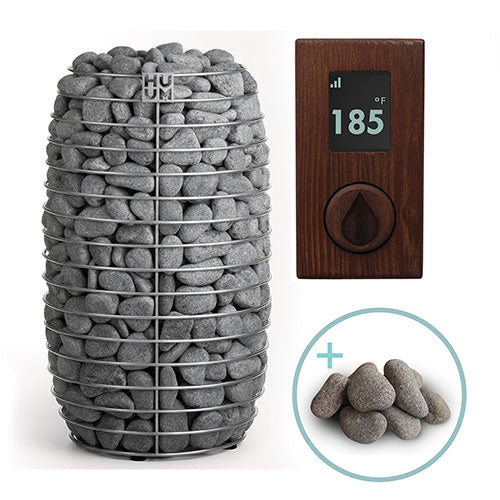

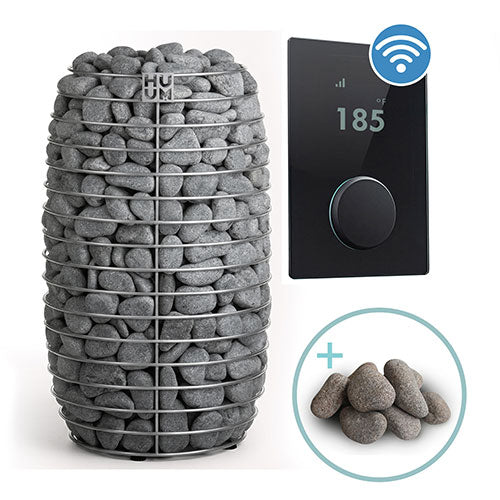

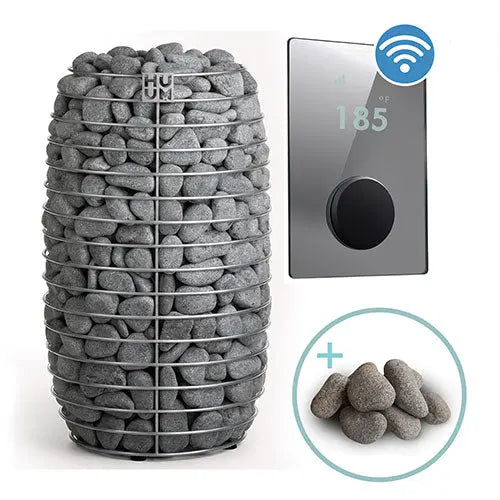

HUUM HIVE Mini 10.6kW Sauna Heater Package

The HUUM HIVE Mini 11STU sauna heater package features all the necessities that will give your sauna space a touch of tradition. This all-inclusive package includes the HIVE Mini 10.6kW sauna heater, UKU control with optional Wi-Fi, and 330 lbs of sauna stones.

Precision-engineered and crafted in Estonia for a true European sauna experience.

HIVE Mini 10.6kW Sauna Heater

• Elegant design
• 240V/1PH operation
• Works with UKU controls
• 330-pound stone capacity
• Direct contact between stones and heating elements
• More exposed stones create a longer and milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements​
• Floor model with adjustable legs
• Air tunnel shortens heat-up time and increases life of heating elements
• SGS listed
• Designed, engineered, and made in Estonia
• Dimensions: 18.1"Diameter (460mm) x 29.5"H (750mm)
• Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)

UKU Control

• Sleek black control display panel
• Multiple color options available (additional charges apply)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 104-230°F
• Delayed start up to 48hrs in advance
• Optional built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
• 8 language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
• Inside/outside sauna room installation
• Optional smart heating setting
• Available decorative control display panels
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock
• Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
• Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
• Limited 3-year residential warranty and limited 1-year commercial warranty

Stones 24

• Olivine diabase sauna stones
• Rounded shape to complement heater design
• Durable with high-heat capacity
• Stones range from 2" to 4" (5-10 cm)

HIVE Mini 10.6kW Sauna Heater

• 10.6kW Sauna Heater
• Adjustable Legs
• Pre-Installed HIVE Air Tunnel
• Installation and Operation manual
• 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

UKU Control

• Black Control Console
• Main Control Module
• Temperature Sensor
• Door Sensor
• Control Display Panel Cable
• Temperature Sensor Cable
• Door Sensor Cable
• Installation and Operation Manual
• 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty

Stones 24

• 330 lbs of 2" - 4" (5-10 cm) Round Sauna Stones

Model
HIVE MINI 11STU PKG
HIVE Mini 11
Kilowatt Rating
10.6kW
Minimum Cubic Feet
354
Maximum Cubic Feet
566
Heater Weight
40.3 lbs
Shipping Weight with Sauna Stones
370.3 lbs
240V, Single-Phase Amperage
43.75
Circuit Breaker
See Installation and Operation Manual
Wire Size AWG
6
Diameter
18.1" (460mm)
Height
29.5" (750mm)

UKU Control
Minimum Temperature Setting
104°F
Maximum Temperature Setting
230°F
Shipping Weight
20 lbs

Console Dimensions
Width
2.2" (55mm)
Depth
0.9" (22mm)
Height
4.1" (105mm)

Main Module Dimensions
Width
3.5" (90mm)
Depth
2.3" (58mm)
Height
5.6" (142mm)

Display Panel Cable
Length
9.8 ft
AWG
22

Temp Sensor Cable
Length
16.4 ft
AWG
24

Door Sensor Cable
Length
16.4 ft
AWG
24

About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.

Accessory Freight: Sauna accessories can be shipped with this sauna heater to save on shipping costs.
