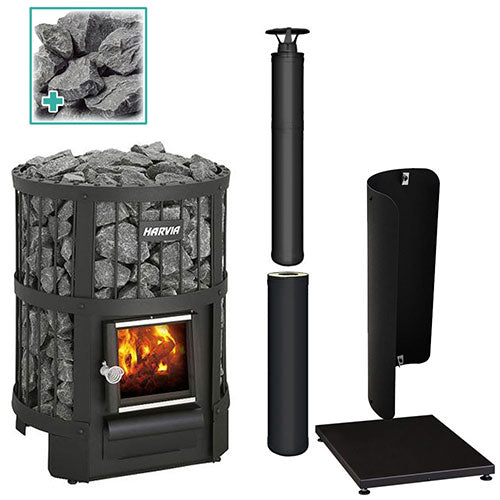

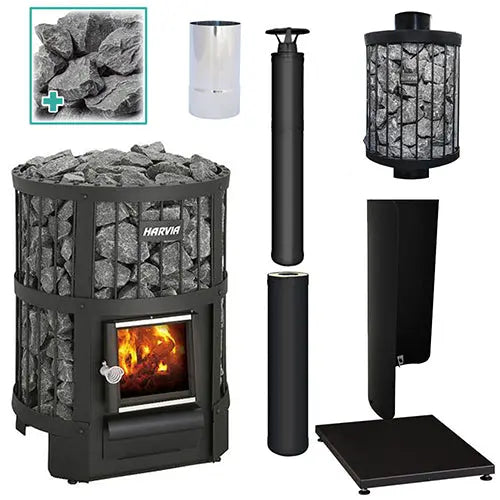

Harvia Legend 150 Wood Sauna Heater Package

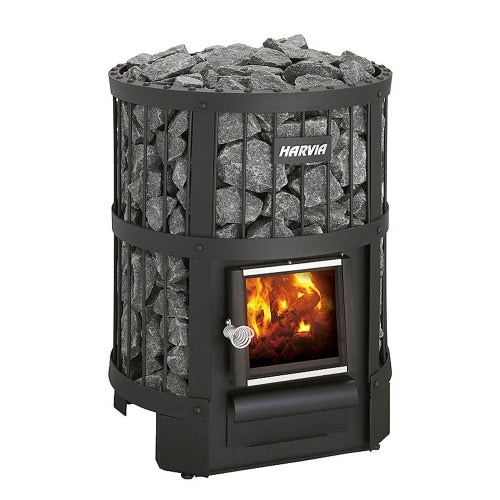

Legend 150 Sauna Stove

• Wood-burning
• 16kW
• Heats two rooms
• Cleaner and efficient burning
• Black steel frame
• Floor model
• Adjustable feet
• Designed, engineered, and made in Finland
• For sauna rooms from 212 to 459 cu. ft.
• 264 pound stone capacity
• Dimensions: 20.9"W (53 cm) x 20.9"D (53 cm) x 29.1"-30.3"H (74-77 cm)
• Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

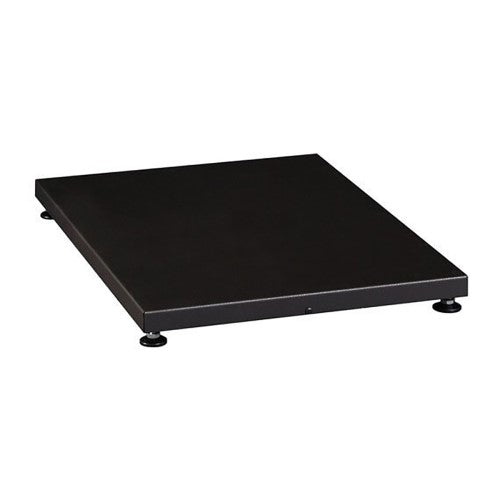

Protective Bedding

• Black aluminum-zinc coated steel
• Helps protect floors
• Adjustable feet
• Can be installed on a sloping floor
• For wood-burning sauna stoves
• Dimensions: 18.5"W (47 cm) x 26.2"D (67 cm) x 2.4"-3"H (6-8 cm)
• Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

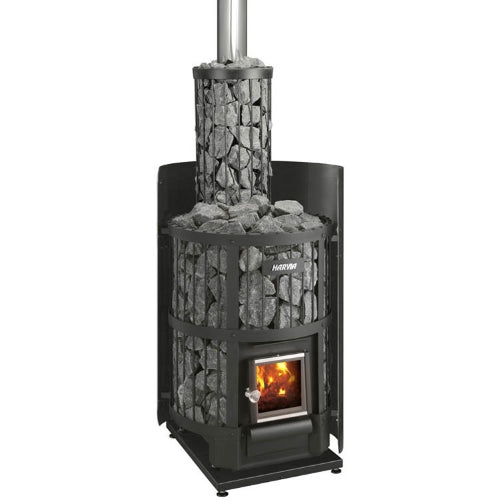

Protective Sheath

• Black steel
• Can range from 1 to 3 as required when mounted
• Reduces safety distance to combustible materials
• Dimensions: 20.5"W (52 cm) x 5"D (13 cm) x 39.4"H (100 cm)
• Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

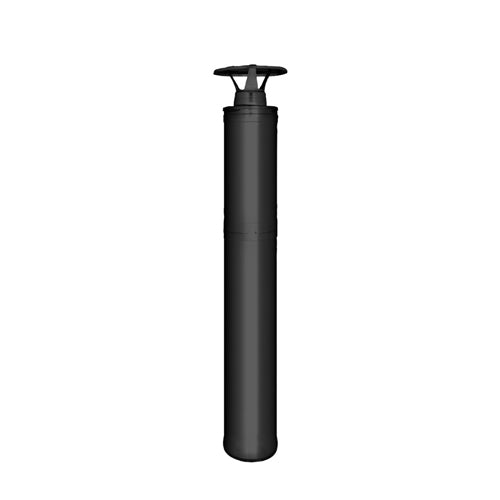

Chimney Kit

• Black powder-coated steel
• CE marking
• Mineral wool insulation material
• Mounts in vertical position
• Able to be easily extended
• Touch protection not needed if installed in a sauna
• Soot fire resistant
• Freeze thaw resistant
• Works with wood-burning sauna stoves
• Works with smaller fireplaces
• Works with iron stoves
• Designed, engineered, and made in Finland
• Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 59.1"H (150 cm)
• Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

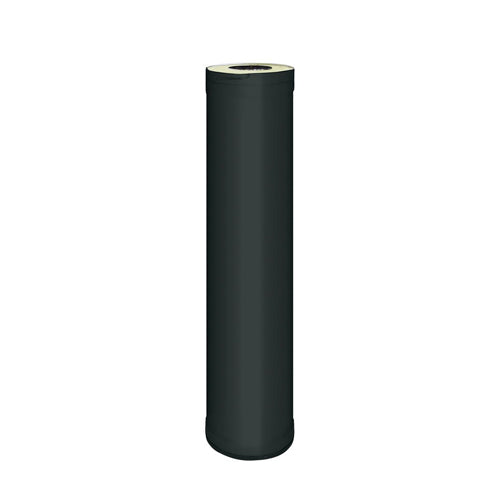

Chimney Extension

• Black powder-coated steel
• Prevents movement caused by temperature changes
• Can be installed indoors and outdoors
• Designed, engineered, and made in Finland
• Dimensions: 8.7"W (22 cm) x 8.7"D (22 cm) x 39.4"H (100 cm)
• Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

Water Heater

• Black steel
• Heats water quickly
• New tap solution
• Tap can be fixed to a wall or bench
• Stones cover the front of the tank
• 25 liter water tank capacity
• 33 pound stone capacity when using 2" to 4" (5-10 cm) split-face sauna stones
• Dimensions: 14.2"W (36 cm) x 14.2"D (36 cm) x 35.8"H (91 cm)
• Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

Smoke Pipe

• Stainless steel
• CE certification
• Works with wood-burning sauna stoves except Harvia 50
• Dimensions: 4.53"W (12 cm) x 4.53"D (12 cm) x 7.9"H (20 cm)
• Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

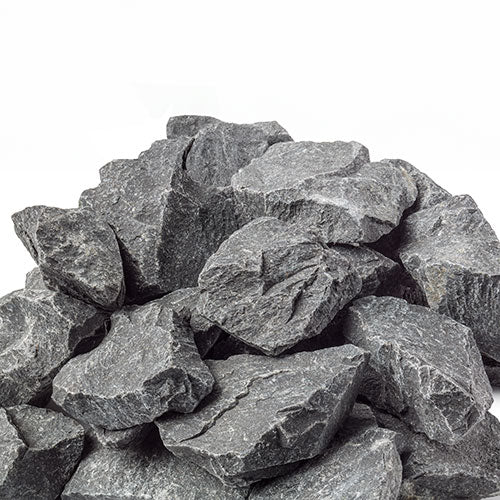

Sauna Stones

• Olivine diabase sauna stones
• Split-face shape
• Durable with high-heat capacity
• Stones range from 4" to 6" (10-15 cm)

Legend 150 Sauna Stove

• Sauna Stove
• Stove Door
• Ash Box
• Adjustable Legs
• Installation and Operation Manual
• 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Protective Bedding

• Small Protective Bedding
• Installation and Operation Manual
• 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Protective Sheath

• Protective Sheath Panel
• Installation and Operation Manual
• 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Chimney Kit

• Chimney
• Utility Box
• Non-Insulated Smoke Pipe
• Rain Cap
• Rubber Rain Flange
• Installation Set for Rain Flange
• Stainless Steel Lead-Through Flange for Ceiling
• Lead-Through Insulation and Protector
• Installation and Operation Manual
• 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Chimney Extension

• 1000mm Chimney Extension
• Installation and Operation Manual
• 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Water Heater

• Water Heater
• Installation and Operation Manual
• 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Smoke Pipe

• Smoke Pipe
• 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Sauna Stones

• 264 lbs of 4" to 6" (10-15 cm) Split-Face Stones

Model
LEGEND 150 BK WH PKG

Model
LEGEND 150
Kilowatt Rating
16kW
Primary Fuel
Wood
Maximum Firewood Length
15" (39 cm)
Diameter of Firewood
3-6" (8-15 cm)
Minimum Cubic Feet
212 cu. ft.
Maximum Cubic Feet
459 cu. ft.
Minimum Room Height
69" (175 cm)
Flue Connection Location
Top and Back
Heater Weight
128 lbs (58 kg)
Shipping Weight with Sauna Stones
392 lbs (178 kg)
Width
20.9" (53 cm)
Depth
20.9" (53 cm)
Height
29.1"-30.3" (74-77 cm)

Model
WL100
Construction Material
Stainless Steel
Color
Black
Weight
23.6 lbs (11 kg)
Width
18.5" (47 cm)
Depth
26.2" (67 cm)
Height
2.4"-3"H (6-8 cm)

Model
WL200
Construction Material
Stainless Steel
Weight
15 lbs (7 kg)
Width
20.5" (52 cm)
Depth
5" (13 cm)
Height
39.4" (100 cm)
Color
Black

Model
WHP1500M
Construction Material
Stainless Steel
Non-Vertical Installations
Not Allowed
Weight
24.9 lbs (11 kg)
Width
8.7" (22 cm)
Depth
8.7" (22 cm)
Color
Black
Height
59.1" (150 cm)

Model
WHP1000M
Non-Vertical Installations
Not Allowed
Wind Load
6.5 ft (2m) Above Last Support
Flexural Strength-Tensile Strength
16.4 ft (5m)
Maximum Spacing of Lateral Supports
9.8 ft (3m)
Weight
14.8 lbs (7 kg)
Width
8.7" (22 cm)
Depth
8.7" (22 cm)
Construction Material
Stainless Steel
Color
Black
Height
39.4" (100 cm)

Model
WP250LD
Construction Material
Stainless Steel
Color
Black
Stone Size
2" to 4" (5-10 cm)
Weight
24 lbs (11 kg)
Width
14.2" (36 cm)
Depth
14.2" (36 cm)
Height
35.8" (91 cm)
Water Tank Capacity
25 liters

Model
WZ11520
Construction Material
Stainless Steel
Weight
0.88 lbs (1 kg)
Width
4.53" (12 cm)
Depth
4.53" (12 cm)
Height
7.9" (20 cm)

About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.
