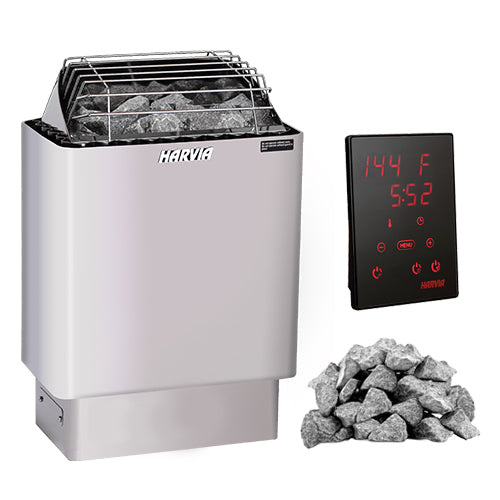

Harvia KIP 4.5kW

The Harvia KIP 4.5kW Sauna Heater Package comes complete with the KIP45W Sauna Heater, Xenio Wi-Fi Control, and Sauna Stones. This traditional stainless steel heater has a dual wall construction that allows the exterior to remain cool to the touch and heats up fast.

The KIP45W is designed to operate with the separate control unit, giving you flexible and precise management of time, temperature, and other heating functions.

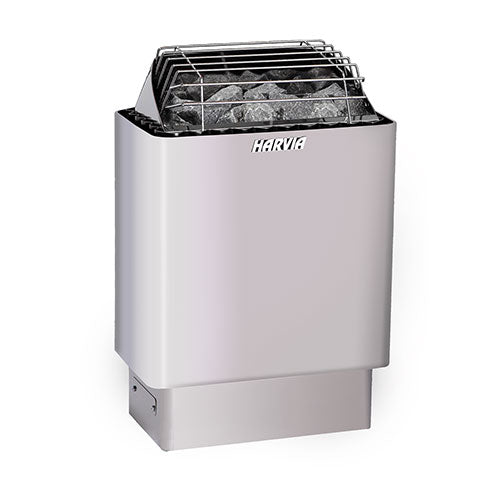

KIP45W Sauna Heater

• Wall-mounted design
• Dual wall keeps exterior cool to the touch
• Industrial grade, serviceable heating elements
• Direct rock-to-heating element contact
• Stainless steel construction
• Designed, engineered, and made in Finland
• 44 pound stone capacity
• Dimensions: 16.1"W (40.9 cm) x 11"D (27.9 cm) x 23.6"H (59.9 cm)
• Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

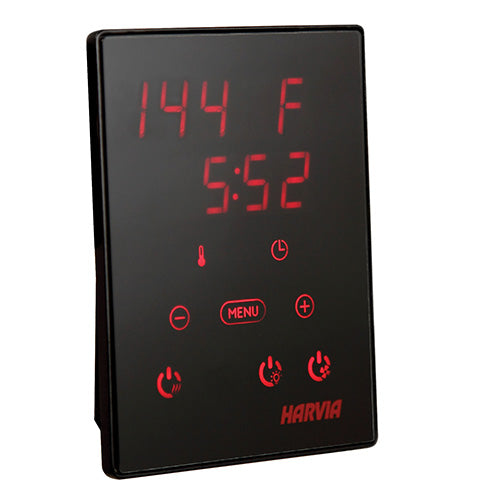

Xenio Wi-Fi Control

• Modern control unit that is precise and easy
• Wi-Fi connectivity for remote control and monitoring
• Controls time, temperature, lighting, and fan
• Operating temperature range of 104-194°F
• Surface of flush-mount installation type
• Can be installed inside or outside the sauna room
• Dimensions: 3.4"W (8.6 cm) x 1"D (2.5 cm) x 4.4"H (11.2 cm)
• Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

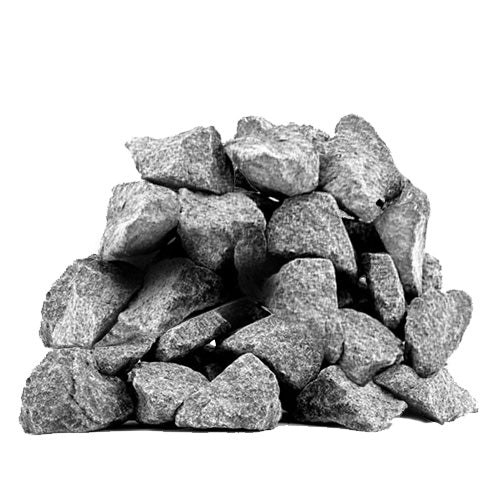

Sauna Stones

• Olivine diabase sauna stones
• Split-face shape
• Durable with high-heat capacity
• Stones range from 2" to 4" (5-10 cm)

KIP45W Sauna Heater

• Sauna Heater
• Installation and Operation Manual
• 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Xenio Wi-Fi Control

• Control
• Temperature Sensor
• Power Unit
• Installation and Operation Manual
• 1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)

Sauna Stones

• 44 lbs of 2" to 4" (5-10 cm) Split-Face Stones

Model
KIP45W PKG
Model
KIP45W
Room Size
100-210 cu. ft.
Wattage Rating
4500
Voltage
240
Phase
1
Amperage
18.8
Circuit Breaker
See Installation and Operation Manual
Wire Size AWG
10/2 + 14/2
Safety Listing
ETL (Electrical Testing Laboratories)
Minimum Ceiling Height
75" (190 cm)
Safety Distance (Front to Back)
See Installation and Operation Manual
Safety Distance (Left to Right)
See Installation and Operation Manual
Stone Capacity
44 lbs (20 kg)
Stone Size
2" to 4" (5-10 cm)
Width
16.1" (40.9 cm)
Depth
11" (27.9 cm)
Height
23.6" (59.9 cm)
Weight
29 lbs (13.2 kg)
Shipping Weight with Sauna Stones
73 lbs (33.1 kg)
Model
CX170-U1-15-XW
Maximum Output Kilowatt Rating
10.5kW
Voltage
240
Phase
1
Temperature Adjustment Range
104-194°F
Pre-Setting Time Adjustment Range
0-12 Hours
Width
3.4" (8.6 cm)
Depth
1" (2.5 cm)
Height
4.4" (11.2 cm)
