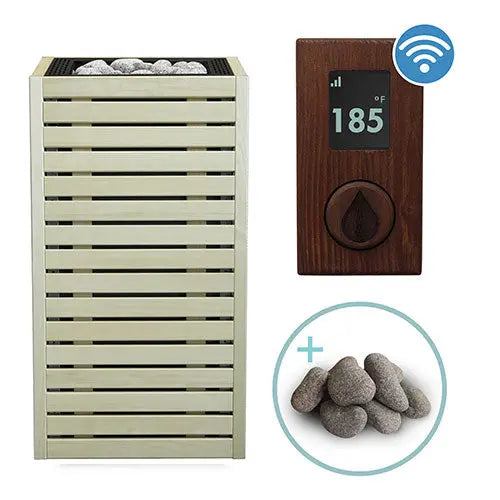

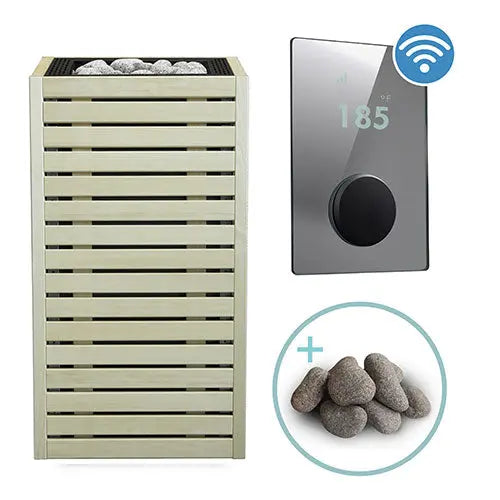

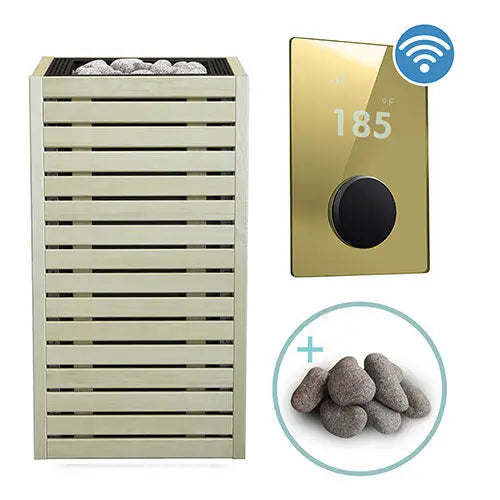

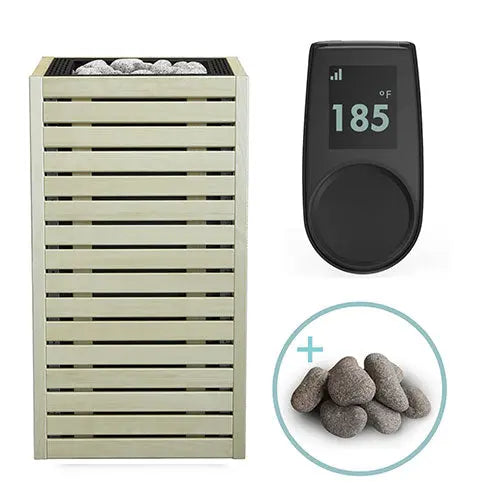

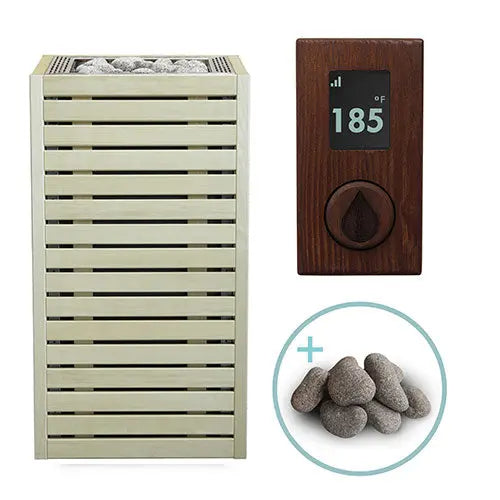

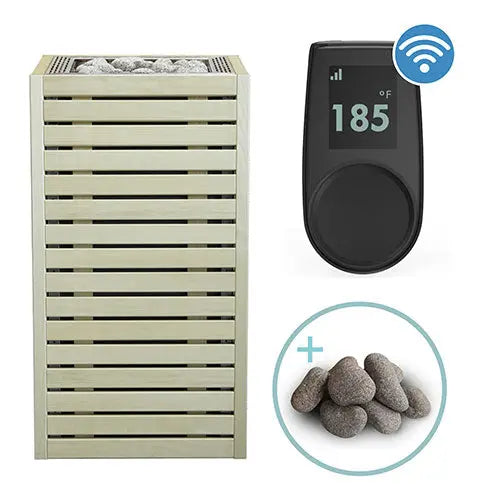

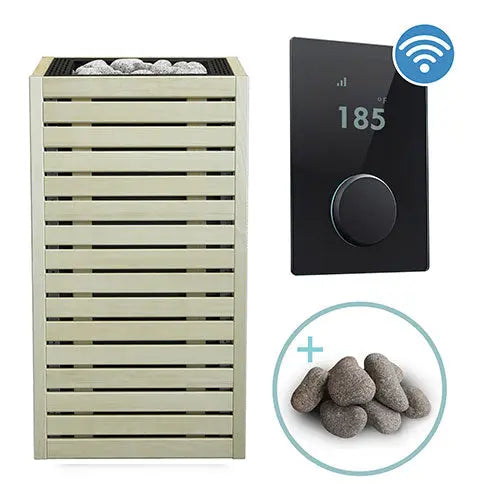

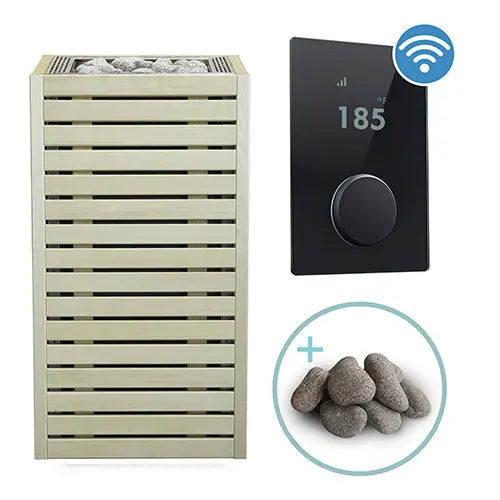

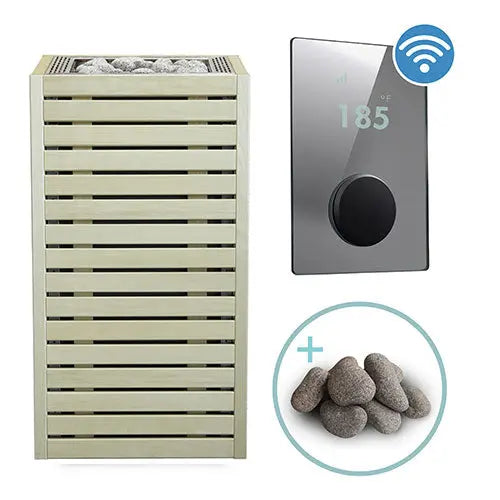

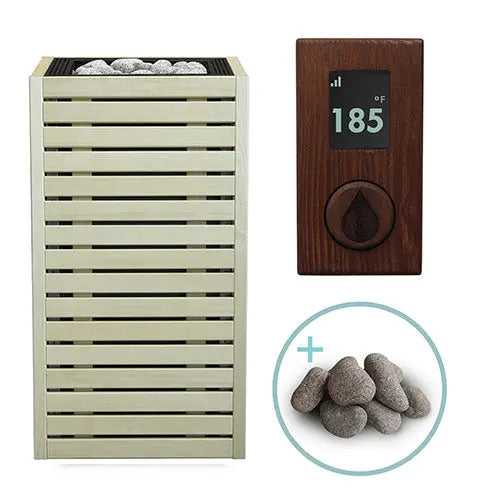

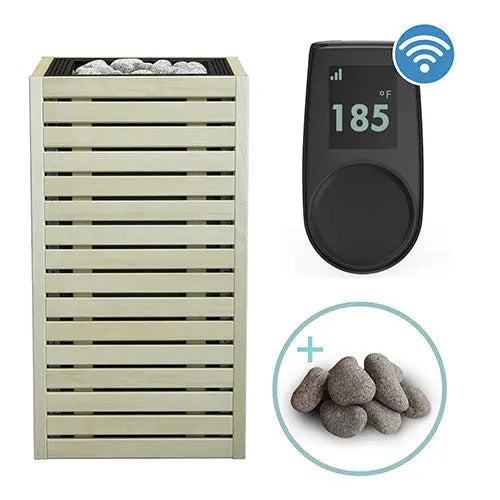

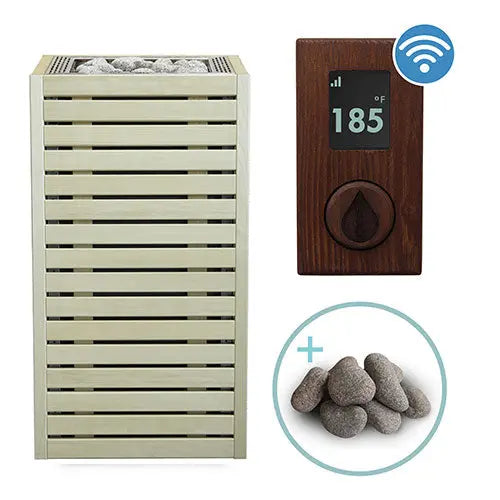

HUUM CORE Electric Sauna Heater Package - Aspen

The HUUM CORE Sauna Heater Package comes complete with the CORE Aspen Sauna Heater, UKU Control, and Sauna Stones. This heater package is built to match the aesthetic of your sauna room while providing exceptional performance and luxurious steam with an upscale, modern look.

Crafted in Estonia where sauna is a way of life, the HUUM CORE Aspen is constructed from stainless steel with assorted inlay finishes and Aspen pre-fitted side panels to match your saunas interior. Available in a variety of power ratings to suit a wide array of sauna sizes, the CORE thrives in tight spaces where users can benefit from the heater’s small footprint and minimal safety distances. This clever design allows endless choices for placement, including the option to embed the heater within the sauna bench.

The CORE will swiftly heat the sauna room while you confidently ladle water upon the sauna stone surface to generate an abundance of steam. Pair the unit with a UKU Control for total command of your powerful sauna heater system.

Backed by a 3-year warranty for private use, the HUUM CORE Aspen Sauna Heater is an embodiment of pure Nordic design, showcasing versatile functionality and durability while providing long-lasting relaxation.

CORE Aspen Sauna Heater

• 240V/1PH operation
• Customizable design with choice of different inlay finishes
• Wood panels add a finished look to the heater and help prevent burn injuries
• Built to match the sauna room aesthetic
• Can be completely embedded into a sauna bench
• Direct contact between stones and heating elements
• Stainless steel, industrial quality heating elements​
• Designed, engineered, and made in Estonia
• Works with UKU Controls
• 66 pound stone capacity
• Dimensions: 12.2"W (31 cm) x 12.2"D (31 cm)  x 32.7"H (83 cm)
• Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)

UKU Control

• Sleek control display panel
• For heaters up to 18kW (over 11kW requires an extension box)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 104-230°F
• Delayed start up to 48 hours in advance
• Optional built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
• 6-8 language options: English, German, Russian, Italian, Finnish, Estonian (additional Polish and French with mobile app)
• Unlimited number of users
• Notification when set temperature is reached
• Inside/outside sauna room installation
• Optional smart heating setting
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock
• Dimensions: 2.2"W (5.6 cm) x 0.9"D (2.3 cm) x 4.1"H (10.4 cm)
• Limited 3-year residential warranty and limited 1-year commercial warranty

Stones 24

• Olivine diabase sauna stones
• Rounded shape to complement heater design
• Durable with high-heat capacity
• Stones range from 2" to 4" (5-10 cm)

CORE Aspen Sauna Heater

• Sauna Heater
• Adjustable Legs (4)
• Unfinished Metal Shields (4)
• Cover Strips (4)
• Wood Panels (4)
• Cover Strip Fastening Screws
• Wood Panel Fastening Screws
• Installation and Operation Manual
• 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

UKU Control

• Control Panel
• Main Module
• Temperature Sensor
• Door Sensor
• Control Panel Cable
• Temperature Sensor Cable
• Door Sensor Cable
• Installation and Operation Manual
• 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty

Stones 24

• 66 lbs of 2" to 4" (5-10 cm) Round Sauna Stones

Model
CORE ASPEN
Room Size
177-566 cu. ft.
Wattage Rating
6500-10500
Voltage
240
Phase
1
Amperage
25-43.75
Circuit Breaker
See Installation and Operation Manual
Wire Size AWG
10 or 8
Safety Listing
CE (CE Certificate)
Minimum Ceiling Height
80" (203 cm)
Safety Distance (Front to Back)
See Installation and Operation Manual
Safety Distance (Left to Right)
See Installation and Operation Manual
Stone Capacity
66 lbs (30 kg)
Stone Size
2" to 4" (5-10 cm)
Width
12.2" (31 cm)
Depth
12.2" (31 cm)
Height
32.7" (83 cm)
Weight
41.9 lbs (19 kg)
Shipping Weight with Sauna Stones
107.9 lbs (48.9 kg)

Model
CORE ASPEN PANEL
Construction Material
Aspen Wood
Width
15.1" (38.4 cm)
Depth
1.1" (2.7 cm)
Height
31.5" (80 cm)
Model
UKU
Minimum Temperature
104°F
Maximum Temperature
230°F
Width
2.2" (5.6 cm)
Depth
0.9" (2.3 cm)
Height
4.1" (10.4 cm)

Model
CORE ASPEN 6
Room Size
177-318 cu. ft.
Wattage Rating
6500
Amperage
25
Wire Size AWG
10

Model
CORE ASPEN 9
Room Size
283-460 cu. ft.
Wattage Rating
9000
Amperage
37.5
Wire Size AWG
8

Model
CORE ASPEN 11
Room Size
354-566 cu. ft.
Wattage Rating
10500
Amperage
43.75
Wire Size AWG
8

About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.
