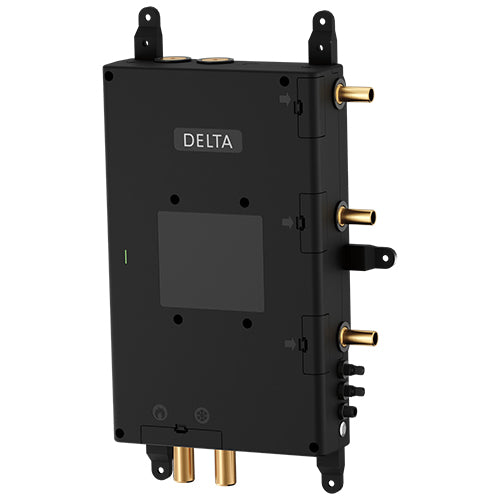

ShowerSense 3-Port Digital Thermostatic Shower Rough

• Includes 3 ports
• TempAssure thermostatic valve keeps water temperature within a safe range, protecting you from sudden temperature changes
• Separate mixing valves independently calibrated for each outlet
• Access customizable presets when connected to a compatible control interface
• Independent temperature and water volume control for each outlet port
• Built-in Wi-Fi for connection to the DFC@Home app and other Wi-Fi enabled devices
• When starting the shower from the DFC@Home app, the shower will pause once the desired temperature is reached
• Firmware updates via user interface when connected to Wi-Fi
• Test button for rough-in pressure check
• Diagnostic LED light
• Dimensions: 11.5"W (29.2 cm) x 3.0"D (7.6 cm) x 19.6"H (49.8 cm)
• Limited 2-year warranty (consumer use)

• Digital Shower Rough
• 12VDC/60W Power Adapter with 2.5m Wire
• 35' Interface Cable
• Interface Cable Adapter
• Installation and Operation Manual
• 2-Year Limited Warranty (Consumer Use)

Model

R53000E

Required Outlet

120V

Maximum Power Requirement

60W

Maximum Flow Rate (Per Outlet)

9 gpm (36 L/min) at 80 PSI (550 kPa)

Maximum Flow Rate (All Outlets)

27 gpm (102 L/min) at 80 PSI (550 kPa)

Minimum Flow Per Outlet Device or Shower Head

1.2 gpm (4.5 L/min)

Maximum Operating Pressure

100 psi (690 kPa)

Maximum Water Temperature

150°F (66°C)

Inlet Connection

3/4" NPT

Outlet Connection

1/2" NPT

Width

11.5" (29.2 cm)

Depth

3.0" (7.6 cm)

Height

19.6" (49.8 cm)

Weight

6 lbs (2.7 kg)
