CX Commercial Steam Generator Package

The Mr.Steam CX Generator Package is the next generation of steam power. Ideal for even larger health club and spa facilities, the CX Generator Package is designed for steam rooms with dimensions up to 5,000 cubic feet (CF).

The CX Generator is engineered for peak performance and offers quieter power, ease of installation, and an advanced touch-screen control.

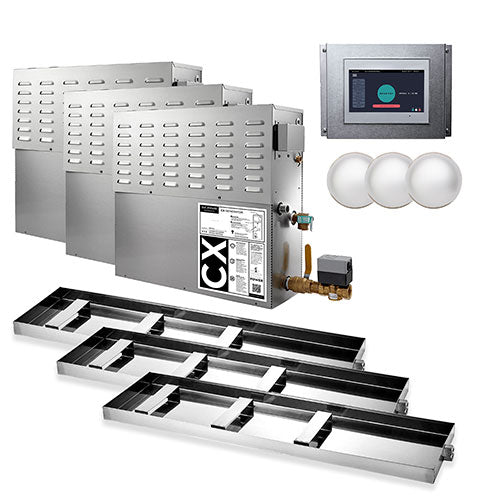

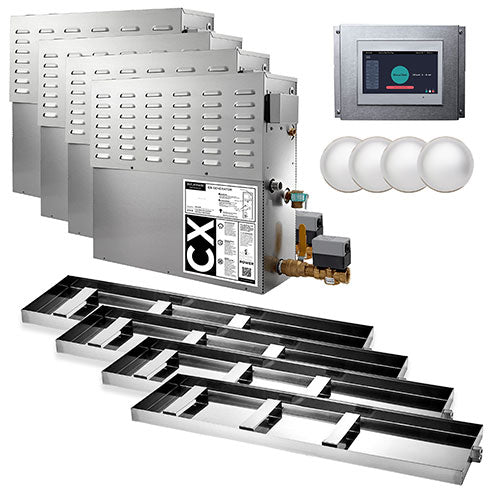

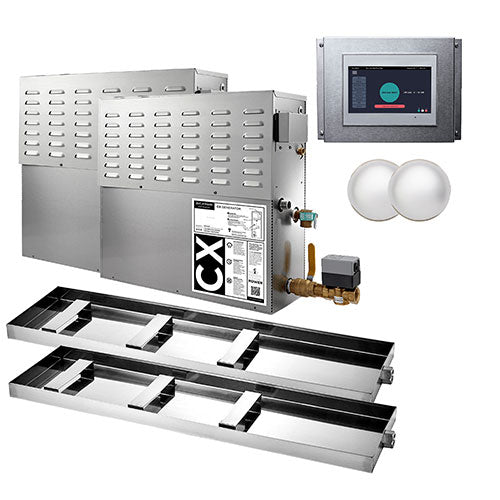

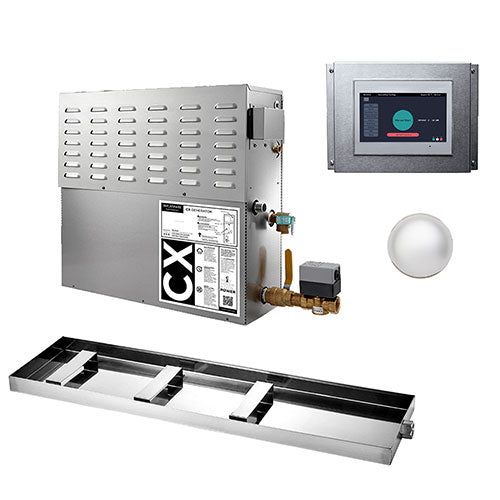

You get everything you need to create the perfect steam experience with the combination of a CX Generator, CX Control, Commercial SteamHead, Condensation Pan, and a factory-installed AutoFlush System depending on the selected generator size. The result is a touchpoint experience that becomes memorable, revitalizing, and ultimately more gratifying.

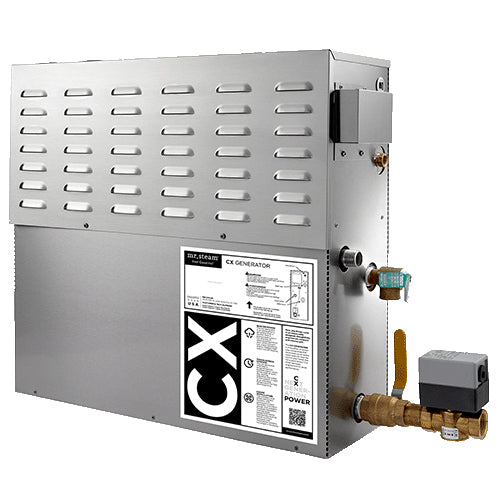

CX Generator

• Industrial-grade, large diameter, serviceable heating element
• Electronic water-level control system
• Stainless steel jacket prolongs life
• Quieter than a pressurized system
• Program to preheat the steam room at the start of each day
• Internal temperature shut-off to prevent low water conditions and integral high water cut-off

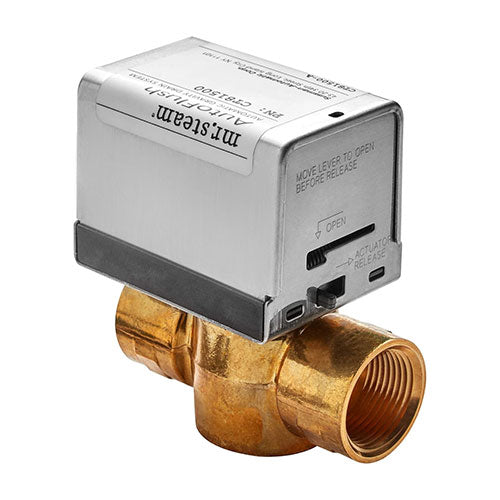

• Factory installed AutoFlush System flushes old water and impurities promoting a healthy life for generators
• Compact size offers more flexibility with room design and straightforward installation
• All units are wired and pre-tested before shipping to assure all parts of the generator are working perfectly
• Designed for commercial applications that require continuous or near continuous use so they are available to use all day
• Dimensions: 33.9"L x 7.9"W x 22"H (per generator including factory-installed autoflush system)

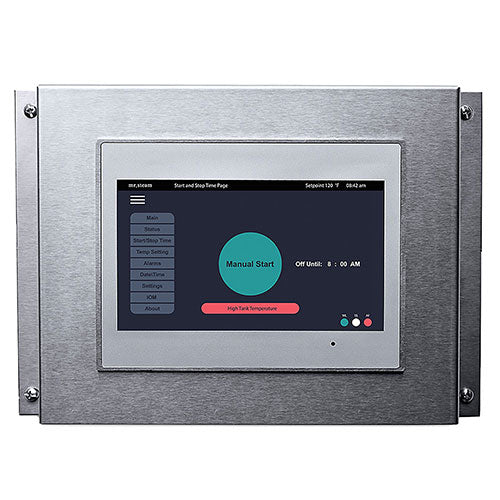

CX Control

• 7” color touch screen control with menu driven user interface
• Easily set on/off time and view system status while the unit is running
• Controls multiple CX Generators in series
• Dimensions: 7.1"L x 1.6"W x 5.3"H

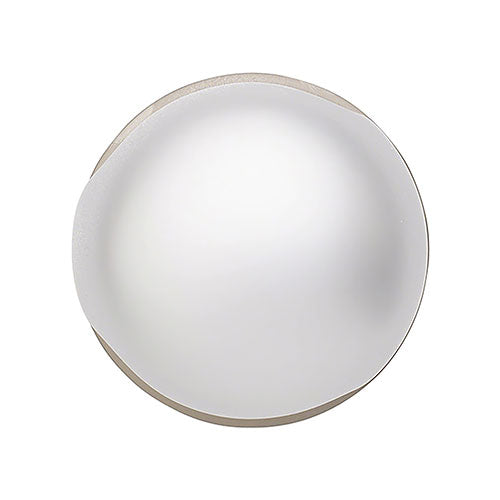

Commercial SteamHead

• Complete with polycarbonate Acrylic Shield
• Comes in a Polished Chrome finish
• No assembly of moving parts required
• Dimensions: 3.1”Diameter x 1.8”W

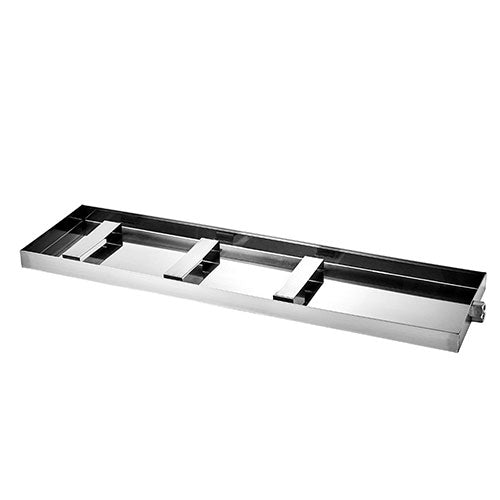

Condensation Pan

• Protects against potential water leaks
• Will trap and redirect the water to a predetermined area
• Goes on a solid level surface with steam generator placed inside
• Dimensions: 33"L x 1.5"W x 9"

CX Generator

• CX GeneratorsCX1250CX1600-CX2500 (2)CX3000 (3)CX5000 (4)
• Installation and Operation Manual
• 1-Year Limited Warranty

CX Control

• CX ControlCX1250CX1600-CX2500CX3000CX5000
• 1-Year Limited Warranty

Commercial SteamHead

• Commercial SteamHeadsCX1250CX1600-CX2500 (2)CX3000 (3)CX5000 (4)
• 1-Year Limited Warranty

Condensation Pan

• Condensation PansCX1250CX1600-CX2500 (2)CX3000 (3)CX5000 (4)
• 1-Year Limited Warranty

Model

CX1250-CX5000

Construction Material

Stainless Steel

Installation Type

Hardwired

Kilowatt Rating

30kW-120kW

Wattage

30000-120000

Water Supply Connection

3/8" NPT

Drain Connection

1" NPT

Safety Valve Connection

3/4" NPT

Minimum Cubic Feet

1001

Maximum Cubic Feet

5000

Product Dimensions

33.9"L x 7.9"W x 22"H (per generator including factory-installed autoflush system)

Shipping Weight

60 lbs (per generator)

CX Control

Product Dimensions

7.1"L x 1.9"W x 5.3"H

Commercial SteamHead

Product Dimensions

3.1"Diameter x 1.8"Depth

Condensation Pan

Product Dimensions

33"L x 1.5"W x 9"H

The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.

The driver is responsible for curbside delivery “only” and will lower the items to ground level.

Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.

Our goal is to ensure your project success.
