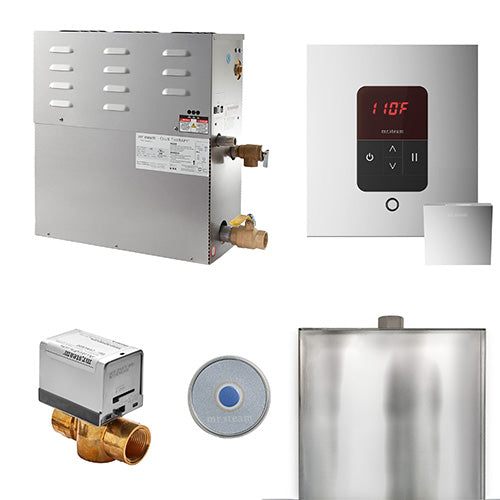

CT Day Spa Steam Generator Package

CT Steam Generator

• High performance and low maintenance
• Stainless steel tank inside and out
• Electronic water-level system
• Industrial-grade heating elements
• Durable electronic components
• Low voltage safety control circuits
• Full-port drain valve
• Compact size to fit in small areas
• Express Steam starts steam quick and maintains water temperature
• Temperature Probe MSTS allows for temperature adjustment from remote control location
• Dimensions: 17"W (43 cm) × 7.9"D (20 cm) x 18.8"H (48 cm)
• Limited 1-year warranty

iTempo Control

• Comes with a matching Aroma Designer Finish SteamHead
• Works with the SteamLinx Module and Mobile App
• Display lets you program the temperature and get comfortable
• Easily mount and install your control snug to the wall
• Dimensions: 4.5"W (11 cm) x 0.3"D (1 cm) x 5"H (13 cm)
• Limited 2-year warranty

Aroma Designer Finish SteamHead

• Square style in a polished chrome finish
• Classic design
• Even distribution of steam
• Remains cool to the touch
• Has an oil reservoir at the top for essential oils
• No assembly of moving parts required
• Dimensions: 3"W (8 cm) x 0.9"D (2 cm) x 2.8"H (7 cm)
• Limited 2-year warranty

SteamStop Button

• On/off simple operation
• Suitable for use inside or outside the steam room
• Low profile and voltage
• Dimensions: 1.5"Diameter (4 cm) x 0.1"D (1 cm)
• Limited 1-year warranty

AutoFlush System

• Automatic self-cleaning system that promotes a long and healthy life for steam generators
• Flushes old water and impurities after every steam shower
• Quietly flushes through a 1" electronically-activated valve
• Simple plug and play installation
• Dimensions: 4"W (10 cm) x 2.4"D (6 cm) x 4.4"H (11 cm)
• Limited 2-year warranty

Condensation Pan

• Protects against potential water leaks
• Will trap and redirect the water to a predetermined area
• Goes on a solid level surface beneath the steam generator
• Built-in brackets raise the steam generator above the bottom of the pan
• Dimensions: 25"W (64 cm) x 9"D (23 cm) x 1.5"H (4 cm)
• Limited 2-year warranty

CT Steam Generator

• Steam Generator
• Installation and Operation Manual
• 1-Year Limited Warranty

iTempo Control

• Control
• 30 ft Control Cable
• Tube of Silicone Sealant
• 2-Year Limited Warranty

Aroma Designer Finish SteamHead

• SteamHead
• 2-Year Limited Warranty

SteamStop Button

• Button
• 1-Year Limited Warranty

AutoFlush System

• AutoFlush Valve with Cord
• 2-Year Limited Warranty

Condensation Pan

• Condensation Pan
• 2-Year Limited Warranty

Model

CT PKG

Model

CT

Construction Material

Stainless Steel

Installation Type

Hardwired

Room Size

0-482 cu. ft.

Kilowatt Rating

6-15kW

Voltage

240/208

Phase

1/3

Drain Connection

1" NPT

SteamHead Connection

3/4" NPT

Water Supply Connection

3/8" NPT

Width

17" (43 cm)

Depth

7.9" (20 cm)

Height

18.8" (48 cm)

Weight

53 lbs (24 kg)

Model

ITEMPO

Construction Material

Plastic, Metal, Electronics

Installation Type

Hardwired

Display

Digital Characters

Interface

Push Buttons

Width

4.5" (11 cm)

Depth

0.3" (1 cm)

Height

5" (13 cm)

Weight

5 lbs (2 kg)

Model

STEAMHEAD 104516 (SQ)

Construction Material

Brass

SteamHead Connection

3/4" NPT

Width

3" (8 cm)

Depth

0.9" (2 cm)

Height

2.8"H (7 cm)

Weight

0.7 lbs (1 kg)

Model

STEAMSTOP

Diameter

1.5" (4 cm)

Depth

0.1" (1 cm)

Weight

2 lbs (1 kg)

Model

AUTOFLUSH CT81500

Width

4" (10 cm)

Depth

2.4" (6 cm)

Height

4.4" (11 cm)

Weight

3 lbs (1 kg)

Drain Valve

1" NPT

Construction Material

Aluminum and Brass

Model

CONDENSATION PAN 103867

Construction Material

Stainless Steel

Drain Fitting

3/4" NPT

Width

25" (64 cm)

Depth

9" (23 cm)

Height

1.5" (4 cm)

Weight

3 lbs (1 kg)
