CORE - Thermo-Aspen

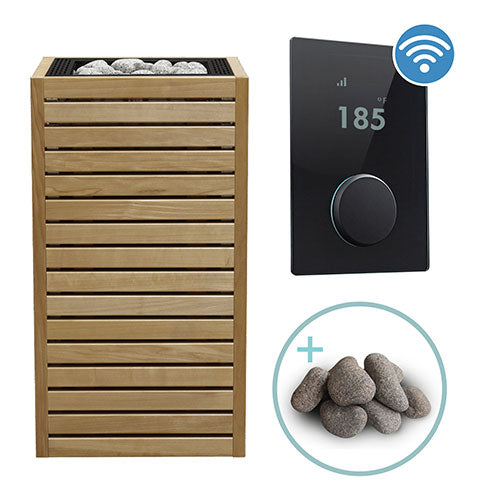

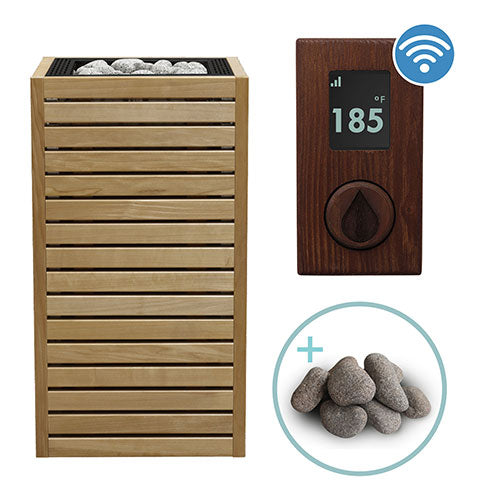

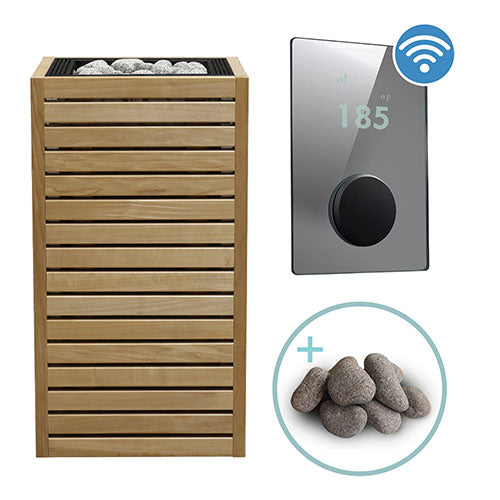

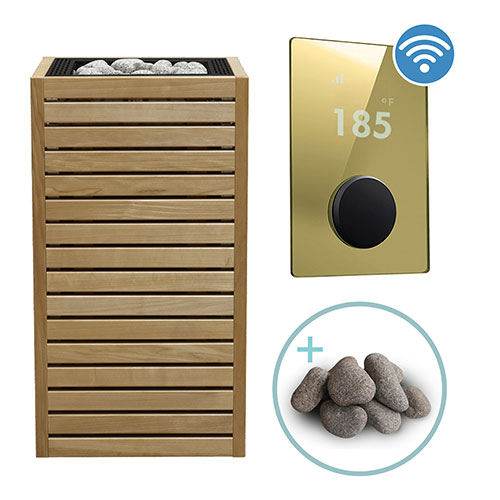

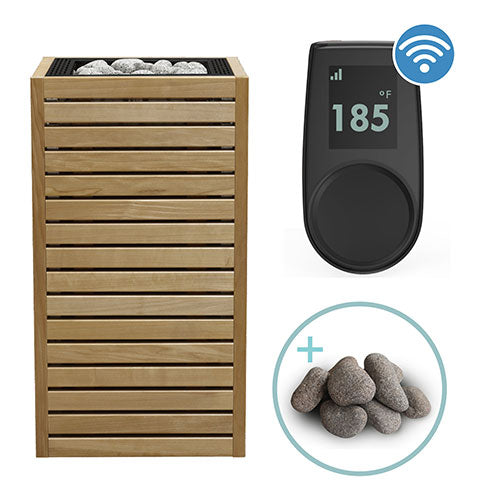

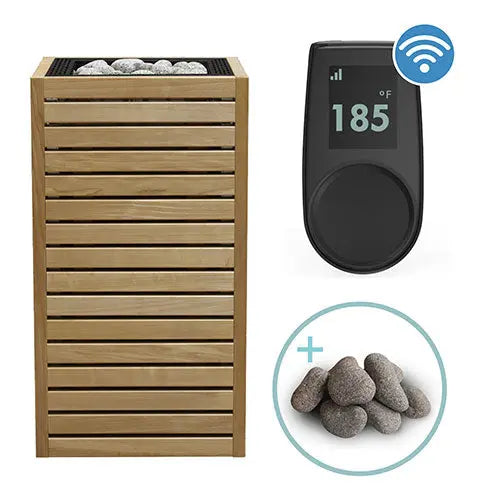

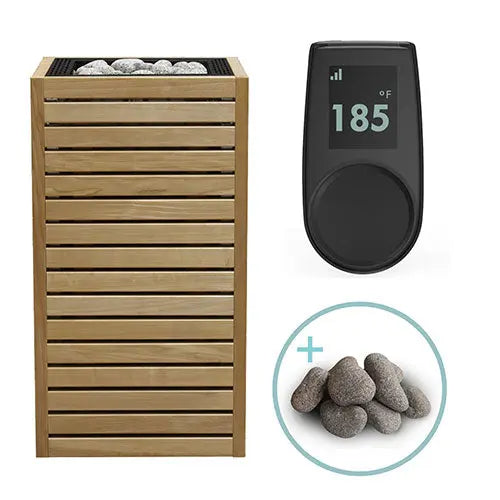

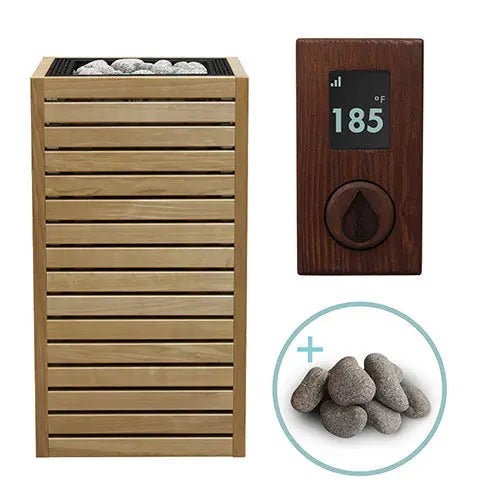

The HUUM CORE Sauna Heater Package comes complete with the CORE Thermo-Aspen Sauna Heater, UKU Control, and Sauna Stones. Designed for flexibility and style, this elegant and powerful unit features beautiful Thermo-Aspen wood exterior panels for a premium appearance and is engineered for sauna rooms up to 566 cubic feet (CF).

6.5kW - For sauna rooms from 177 to 318 cubic feet
9kW - For sauna rooms from 283 to 460 cubic feet
10.5kW - For sauna rooms from 354 to 566 cubic feet

The HUUM CORE Sauna Heater Package comes complete with the CORE Thermo-Aspen Sauna Heater, UKU Control, and Sauna Stones. This heater package is built to match the aesthetic of your sauna room while providing exceptional performance and luxurious steam with a premium look.

Crafted in Estonia where sauna is a way of life, the HUUM CORE Thermo-Aspen is constructed from stainless steel with assorted inlay finishes and Thermo-Aspen pre-fitted side panels to match your saunas interior. Available in a variety of power ratings to suit a wide array of sauna sizes, the CORE thrives in tight spaces where users can benefit from the heater’s small footprint and minimal safety distances. This clever design allows endless choices for placement, including the option to embed the heater within the sauna bench.

The CORE will swiftly heat the sauna room while you confidently ladle water upon the sauna stone surface to generate an abundance of steam. Pair the unit with a UKU Control for total command of your powerful sauna heater system.

Backed by a 3-year warranty for private use, the HUUM CORE Thermo-Aspen Sauna Heater is an embodiment of pure Nordic design, showcasing versatile functionality and durability while providing long-lasting relaxation.

CORE Thermo-Aspen Sauna Heater

240V/1PH operation
Customizable design with choice of different inlay finishes
Wood panels add a finished look to the heater and help prevent burn injuries
Built to match the sauna room aesthetic
Can be completely embedded into a sauna bench
Direct contact between stones and heating elements
Stainless steel, industrial quality heating elements
Designed, engineered, and made in Estonia
Works with UKU Controls
66 pound stone capacity
Dimensions: 12.2"W (31 cm) x 12.2"D (31 cm) x 32.7"H (83 cm)
Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)

UKU Control

Sleek control display panel
For heaters up to 18kW (over 11kW requires an extension box)
Settable on/off, time, temperature, and delay
Settable temperature range of 104-230°F
Delayed start up to 48 hours in advance
Optional built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
6-8 language options: English, German, Russian, Italian, Finnish, Estonian (additional Polish and French with mobile app)
Unlimited number of users
Notification when set temperature is reached
Inside/outside sauna room installation
Optional smart heating setting
Displays set temperature and room temperature
Temperature sensor
Door sensor to keep the heat inside the room
Remotely located main control module
Connects to lights and ventilation
Overheat protection
Child safety lock
Dimensions: 2.2"W (5.6 cm) x 0.9"D (2.3 cm) x 4.1"H (10.4 cm)
Limited 3-year residential warranty and limited 1-year commercial warranty

Stones 24

Olivine diabase sauna stones
Rounded shape to complement heater design
Durable with high-heat capacity
Stones range from 2" to 4" (5-10 cm)

CORE Thermo-Aspen Sauna Heater

Sauna Heater
Adjustable Legs (4)
Unfinished Metal Shields (4)
Cover Strips (4)
Wood Panels (4)
Cover Strip Fastening Screws
Wood Panel Fastening Screws
Installation and Operation Manual
3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)

UKU Control

Control Panel
Main Module
Temperature Sensor
Door Sensor
Control Panel Cable
Temperature Sensor Cable
Door Sensor Cable
Installation and Operation Manual
3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty

Stones 24

66 lbs of 2" to 4" (5-10 cm) Round Sauna Stones

Model

CORE THERMO-ASPEN

Room Size

177-566 cu. ft.

Wattage Rating

6500-10500

Voltage

240

Phase

Amperage

25-43.75

Circuit Breaker

See Installation and Operation Manual

Wire Size AWG

10 or 8

Safety Listing

CE (CE Certificate)

Minimum Ceiling Height

80" (203 cm)

Safety Distance (Front to Back)

See Installation and Operation Manual

Safety Distance (Left to Right)

See Installation and Operation Manual

Stone Capacity

66 lbs (30 kg)

Stone Size

2" to 4" (5-10 cm)

Width

12.2" (31 cm)

Depth

12.2" (31 cm)

Height

32.7" (83 cm)

Weight

41.9 lbs (19 kg)

Shipping Weight with Sauna Stones

107.9 lbs (48.9 kg)

Model

CORE THERMO-ASPEN PANEL

Construction Material

Thermo-Aspen Wood

Width

15.1" (38.4 cm)

Depth

1.1" (2.7 cm)

Height

31.5" (80 cm)

Model

UKU

Minimum Temperature

104°F

Maximum Temperature

230°F

Width

2.2" (5.6 cm)

Depth

0.9" (2.3 cm)

Height

4.1" (10.4 cm)

Model

CORE THERMO-ASPEN 6

Room Size

177-318 cu. ft.

Wattage Rating

6500

Amperage

Wire Size AWG

Model

CORE THERMO-ASPEN 9

Room Size

283-460 cu. ft.

Wattage Rating

9000

Amperage

37.5

Wire Size AWG

Model

CORE THERMO-ASPEN 11

Room Size

354-566 cu. ft.

Wattage Rating

10500

Amperage

43.75

Wire Size AWG

About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.

Accessory Freight: Sauna accessories can be shipped with this sauna heater to save on shipping costs. Consider adding accessories to sauna heater orders to bolster margins.
