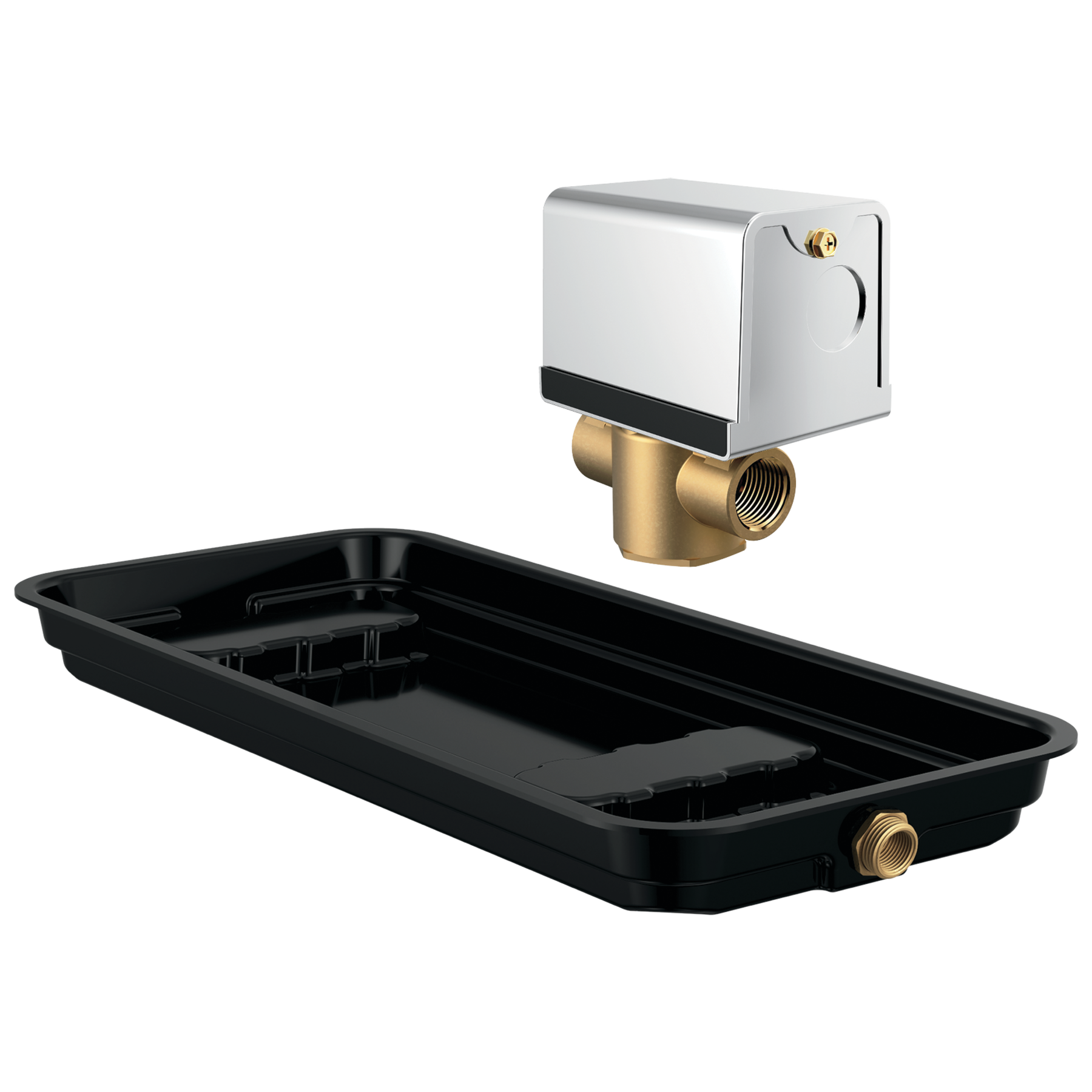

Generator Pan & Auto Drain

The Delta Steam System is an optional add-on to the 5GE-SMP Series Steam Generator. It combines a Generator Pan that provides elevated generator support and an Auto Drain that automatically purges water from the system after each steam shower.

• Generator Pan ensures protection from potential generator leaks or condensation build up
• Auto Drain automatically purges the system by gravity once water in the generator cools
• Generator pan includes solid brass drain pumping connection
• Auto Drain includes valve body with 1/2" NPT female brass connection
• Designed for use with 208V and 240V 5GE-SMP Series Steam Generators (voltage should match the voltage of your generator)

• Generator Pan
• Auto Drain

Model

Generator Pan

Width

24" (610 mm)

Depth

11" (279 mm)

Height

2" (51 mm)

Weight Capacity

250 lbs

Prop 65 WARNING

Lead

Model

Auto Drain

Voltage

208 or 240

Width

2.38" (60 mm)

Depth

3.5" (89 mm)

Height

4.25" (108 mm)

Inlet & Outlet Connection

1/2" NPT Brass Female Thread

Prop 65 WARNING

Lead
