EOS Invisio Midi Under-Bench Electric Sauna Heater

Hidden under the sauna bench completely out of site, the EOS Invisio Midi electric sauna heater boasts excellent performance, high safety standards, and maximizes the space inside your sauna.

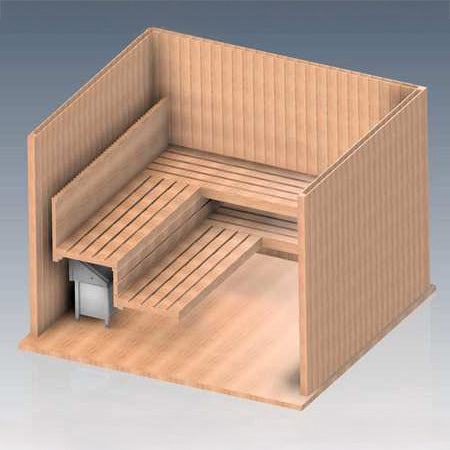

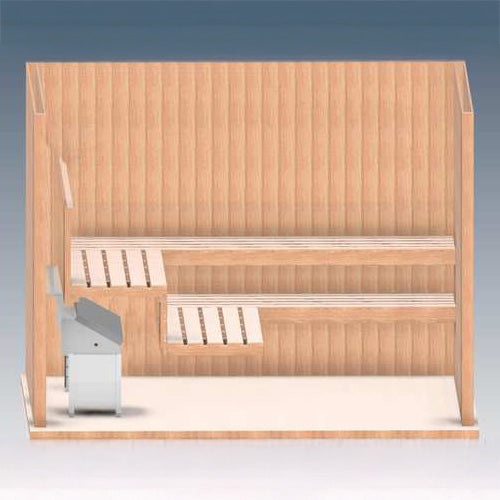

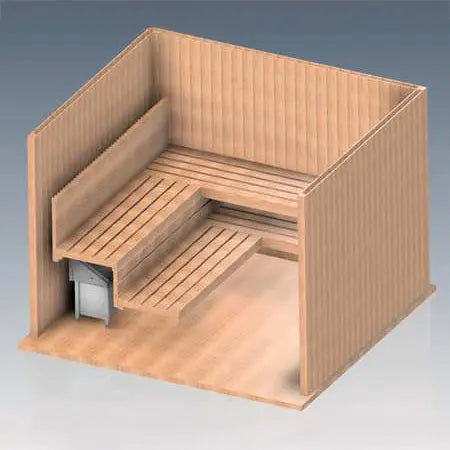

Constructed from a zinc-plated steel shell with stainless-steel top, cover, and feet, the Invisio Midi's intelligent design offers many user benefits. The heating elements are configured to provide fast heat-up times so you can swiftly enjoy a luxurious sauna session. Its low-profile design allows installation beneath sauna benches, saving valuable space with only a 4-inch gap to the wall needed. Bathers can relax without risk of coming in contact with a hot sauna heater.

Water splashes for a steamy sauna are still possible using the cleverly engineered water infusion feature. Simply pour water into the stainless-steel funnel connected to the heater, and the system will distribute the water across the width of the heater to create luxurious steam.

Protected by a 2-year warranty, the Invisio Midi's concealed installation and operation is ideal for wellness enthusiasts who desire powerful sauna experience within a minimalist, spacious interior.

• Concealed installation under the benches for high user safety and a spacious sauna interior.
• Robust zinc-plated steel shell construction with stainless steel top, cover, and adjustable feet.
• Water infusion feature still allows water splashes through a steel funnel to generate steam.
• Safety grill reliably protects against objects falling down on the heater.
• Special positioning of heating elements optimizes performance for quicker heat-up times.
• Designed, engineered and built in Germany.
• Compatible with Touch 3 & Emotec D controls (Sold Separately)
• Dimensions: 45.7"W (116 cm) x 15"D (38 cm) x 30.3"H (77 cm)
• Limited 2-year warranty

• Invisio Midi Electric Sauna Heater
• 4 Adjustable Legs
• Trough with Connection Hose
• Protective Grill
• Stainless Steel Angled Tube
• Mounting Material and Warning Plate
• Installation and Operation Manual
• 2-Year Limited Warranty

Model
14-947543 / 14-947997
Room Size
213-280 cu. ft.
Wattage Rating
6000
Weight
53 lbs (24 kg)
Amperage
25
Model
14-947544 / 14-947998
Room Size
313-494 cu. ft.
Wattage Rating
9000
Amperage
35
Weight
55 lbs (25 kg)
Model
14-947545 / 14-947999
Room Size
494-634 cu. ft.
Wattage Rating
12000
Amperage
25
Weight
60 lbs (27 kg)
Model
INVISIO MIDI 208/3
Room Size
213-634 cu. ft.
Voltage
208
Phase
3
Circuit Breaker
See Installation and Operation Manual
Wire Size AWG
12
Safety Listing
CSA (Canadian Standards Association)
Minimum Ceiling Height
74.8" (190 cm)
Safety Distance (Front to Back)
15.4" (39 cm)
Safety Distance (Left to Right)
50.4" (128 cm)
Stone Capacity
44 lbs (20 kg)
Stone Size
2" to 4" (5-10 cm)
Width
45.7" (116 cm)
Depth
15" (38 cm)
Height
30.3" (77 cm)
Minimum Bench Height
63" (160 cm)
