EOS Cubo Avantgarde - Electric Sauna Heater

The EOS Cubo Avantgarde is a premium electric sauna heater that delivers exceptional performance in a luxurious, ultra-modern design.

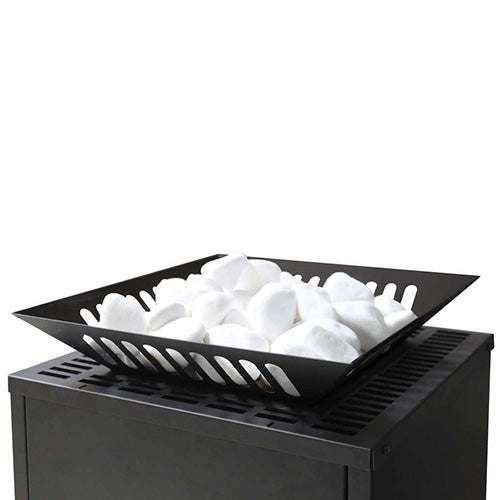

The matte black Cubo Avantgarde is constructed from durable powder-coated steel, which is scratch-resistant to protect its contemporary exterior. With its symetrical dimensions on all sides, the heater complements sauna rooms of any installation configuration. Its distinctive stylized upper stone basket is secured to the top of the heater and cradles decorative white quartz sauna stones for a dramatic visual impact. Layered above the internal diabase sauna stones, the added rocks improve heat retention and increase steam production when water is poured.

Featuring heating elements not directly contacting sauna stones and secure access to wiring connections, the Cubo Avantgarde is extremely efficient and service friendly. Boasting a large rock capacity relative to its compact footprint, the heater optimizes air convection for quick heat-up times, superior performance, and powerful sauna sessions.

Protected by a 2-year warranty, the Cubo Avantgarde offers an exceptional blend of precise craftsmanship and optimized performance to bring your sauna to life.

• Freestanding powder-coated steel design with a scratch-resistant matte black finish.
• Stylish rock store extension with white quartz stones for more intense steam production.
• Uniform appearance on all sides for flexible placement options.
• Robust, durable and service-friendly construction.
• Designed, engineered and built in Germany.
• Compatible with Touch 3 & Emotec D controls (Sold Separately)
• Dimensions: 15.7"W (40 cm) x 15.2"D (38.5 cm) x 28.3"H (72 cm)
• Limited 2-year warranty

• Cubo Avantgarde Electric Sauna Heater
• Diabase Sauna Stones
• Rock Store Frame
• White Quartz Sauna Stones
• Installation and Operation Manual
• 2-Year Limited Warranty

Model
14-947523
Room Size
247-353 cu. ft.
Wattage Rating
7500
Amperage
30
Model
14-947524
Room Size
314-494 cu. ft.
Wattage Rating
9000
Amperage
35
Model
14-947525
Room Size
387-527 cu. ft.
Wattage Rating
15000
Amperage
20
Model
14-947526
Room Size
494-634 cu. ft.
Wattage Rating
12000
Amperage
25
Model
CUBO AVANTGARDE 208/3
Room Size
247-634 cu. ft.
Circuit Breaker
See Installation and Operation Manual
Voltage
208
Phase
3
Safety Listing
CSA (Canadian Standards Association)
Wire Size AWG
12
Minimum Ceiling Height
74.8" (190 cm)
Safety Distance (Front to Back)
19.9" (50.5 cm)
Safety Distance (Left to Right)
20.5" (52 cm)
Stone Capacity
77 lbs (35 kg)
Stone Size
2" to 4" (5-10 cm)
Width
15.7" (40 cm)
Depth
15.2" (38.5 cm)
Height
28.3" (72 cm)
Weight
62 lbs (28 kg)

About This Delivery: This sauna heater system requires a scheduled appointment. It arrives on a wooden pallet and is encased in three-ply cardboard for solid protection. The driver is responsible for “delivery only” and will provide limited assistance at the site. Prior to shipping, we may contact customers to share shipment details and needs and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.
