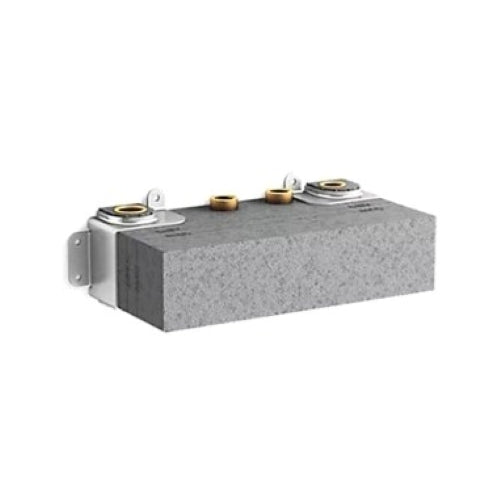

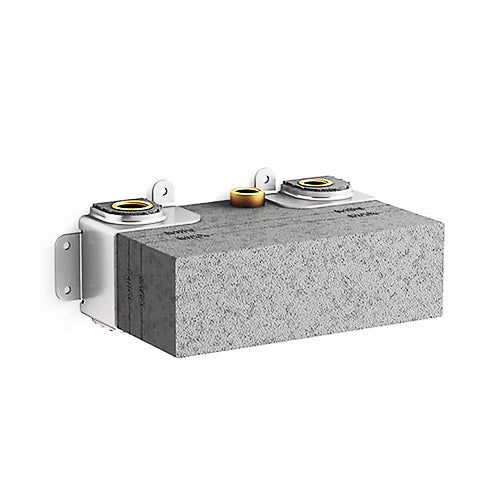

Anthem Recessed Mechanical Thermostatic Valve

The Kohler Anthem Recessed Mechanical Thermostatic Valve allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. With independently controllable ports, this valve is suited for applications where multiple outlets are required.

• High-flow thermostatic mixing valve
• Mechanically controlled thermostatic mixing valve maintains the outlet temperature
• Service stops with integral filters
• Antiscald protection
• Integrated adjustable high-temperature limit stop controls the maximum water temperature
• Adjustable comfort setting (preset at approximately 104°F)
• Maximum flow rate of 8 gpm (30.3 lpm) at 45 psi (3.1 bar) with maximum flow rate of 7 gpm (26.5 lpm) from one outlet
• Optional flow restrictor is included to limit total flow to 1.75 gpm (6.6 lpm) for installations where water conservation or CEC compliance is desired
• 3/4" NPT female inlet and 1/2" NPT female outlet connections
• Dimensions: 16.5"W (42 cm) x 4.9"D (12 cm) x 6.1"H (16 cm)
• Limited lifetime warranty
